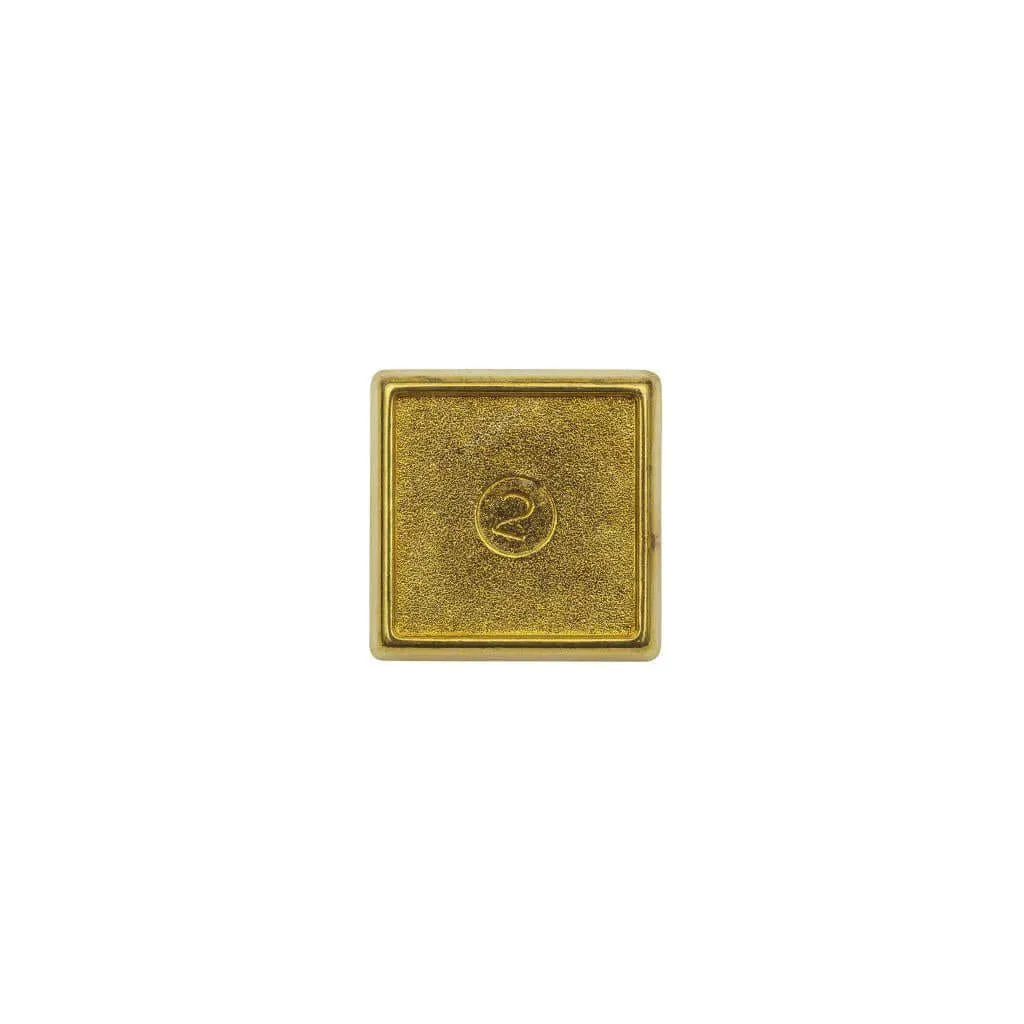

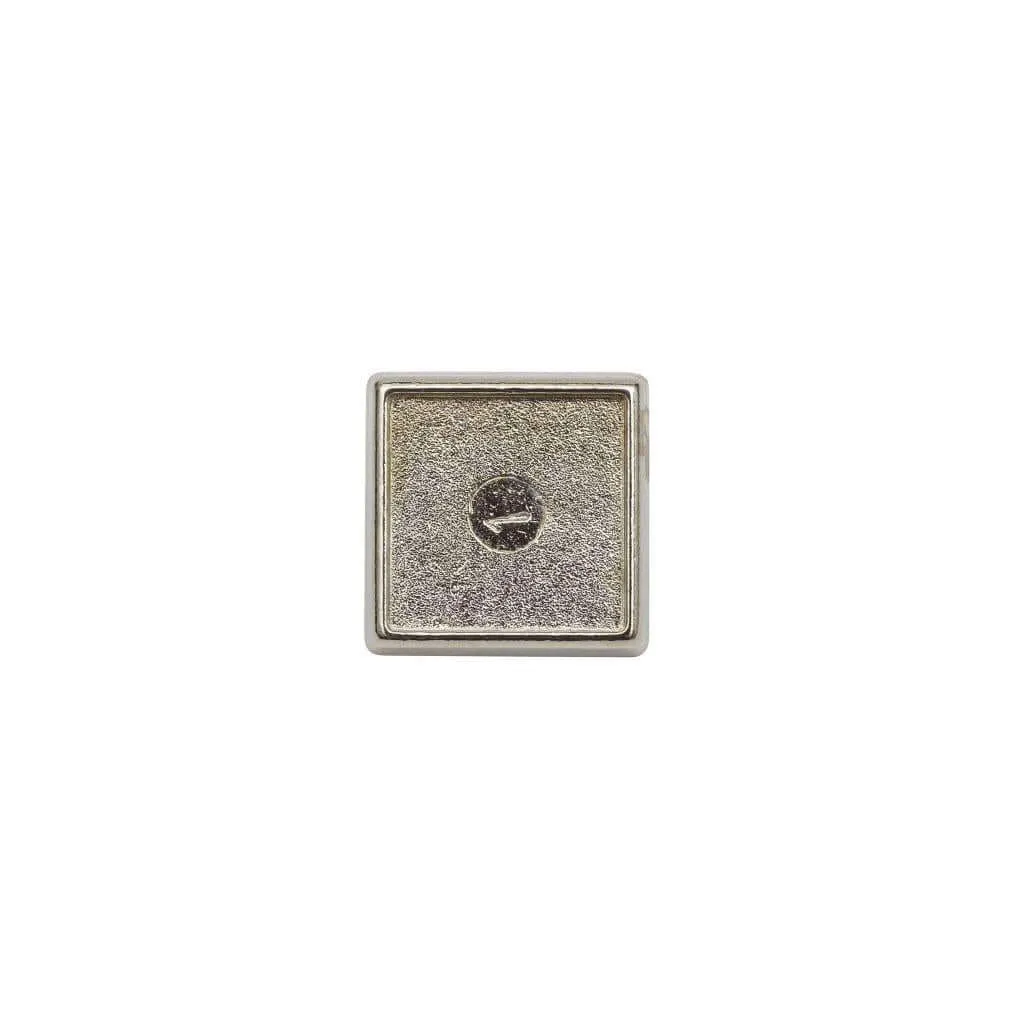

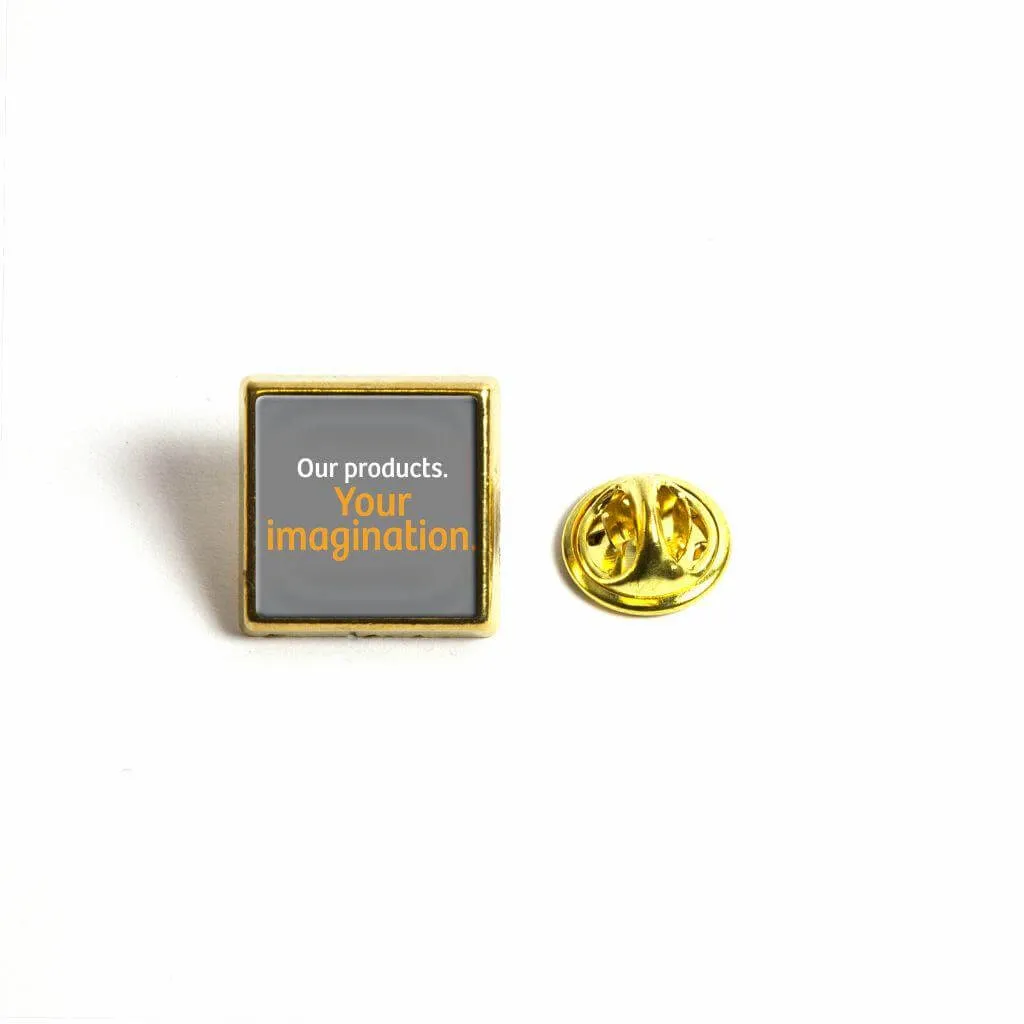

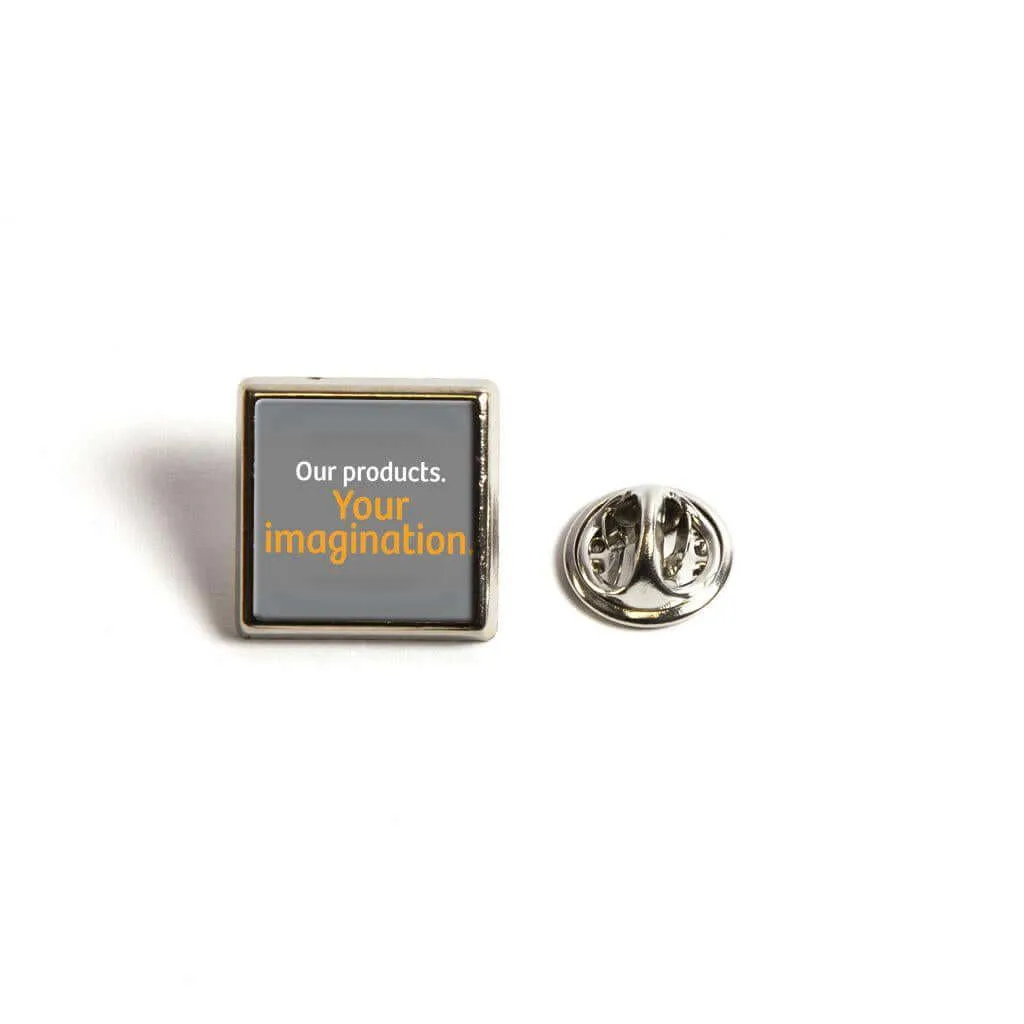

Our PIN-10 badge takes an insert size of 15 x 15mm. Comes with an acrylic window insert to cover your image. As part of our keyringfab system this badge can be assembled using our C25 press machine. The matching cutter matrix used with the machine allows you to cut your artwork to the perfect size. The matching assembly tool enables you to press the clear acrylic window into the badge smoothly, securing the image inside.

Technical Information and Dimensions

• Insert size 15 x 15mm
• Overall dimensions 18 x 18mm

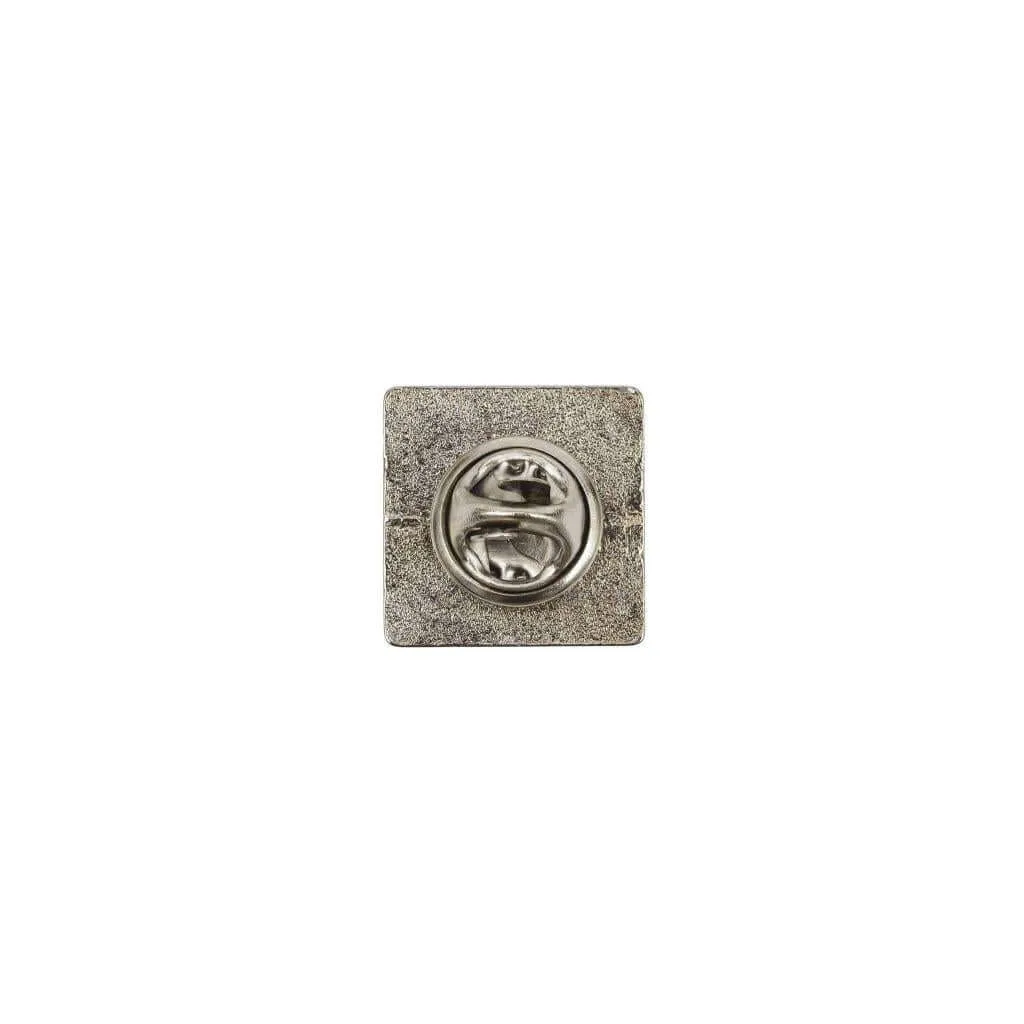

• Clutch pin fastening
• Metal square pin

Assembly Instructions

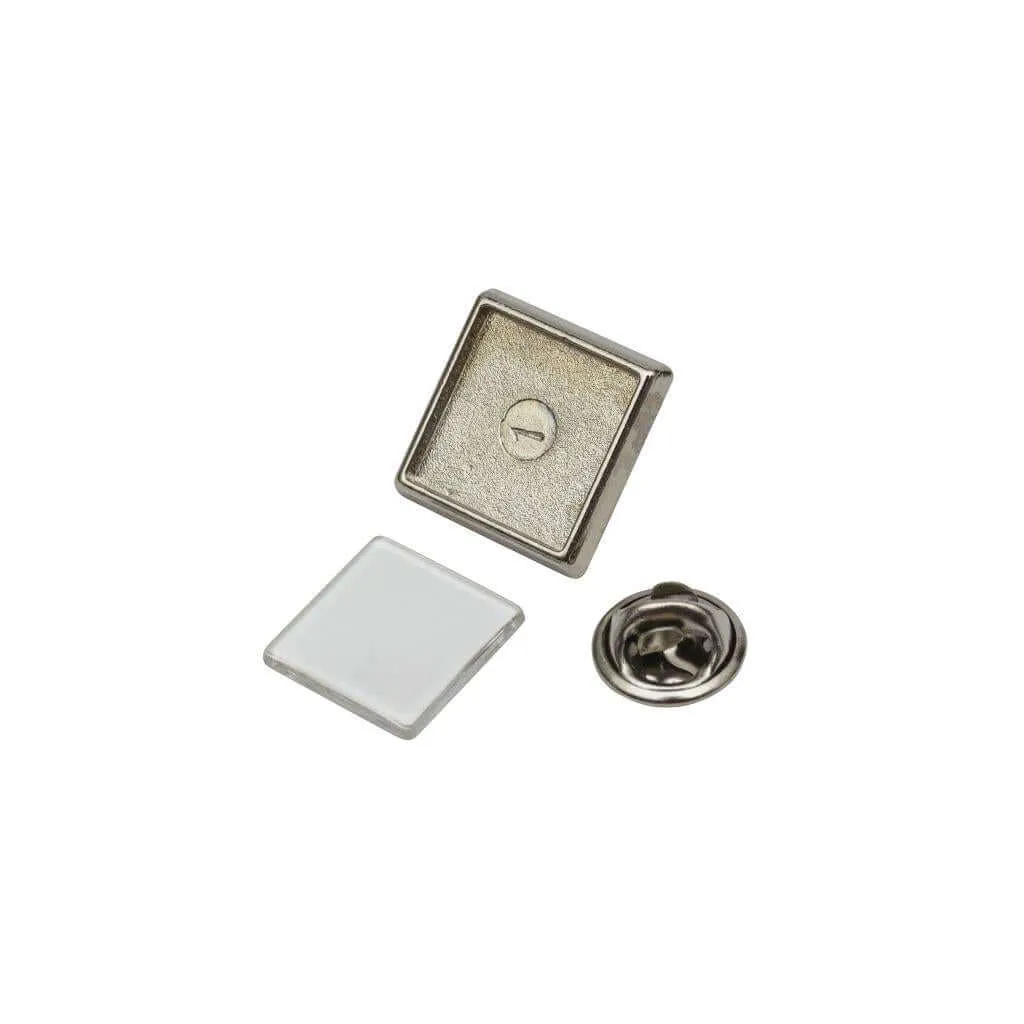

• Supplied as separate badge body and clear insert
• Design, print and cut your 15 x 15mm image
• Insert the image into the recess on badge
• Clear acrylic insert goes over the top of your image
